Quality & Inspection
Quality & Verification for Complex Precision Components
Define critical features, measurement methods and acceptance documents before machining. Inspection scope is agreed around your drawing and application.
Drawing requirements
Requirements begin with the current drawing
Share the drawing revision, application needs and any inspection requirements for review.
Inspection scope
Inspection is agreed for the project
Inspection scope and documentation are defined during quotation according to drawing requirements and application needs.
Documentation
Documentation follows the agreed inspection scope
Requested documentation is reviewed and defined during quotation.
Plan the evidence
What to define in your inspection brief
This planning checklist helps scope the quotation. It is not a standard package or a promise that every test is available for every component.
| Requirement | Define before quotation | Agree the record |
|---|---|---|
| CMM & dimensional inspection | Drawing revision, datums, critical features and sampling requirements. | Feature-level dimensional results and the agreed report format. |
| Runout & surface condition | Reference axis, measurement locations and specified surface parameters. | Measured results tied to the stated setup and acceptance limits. |
| Material & first-article records | Material grade, condition, traceability and first-article scope. | Requested material documentation and first-article dimensional records. |
| Dynamic balancing | Rotor state, interfaces, correction restrictions and customer acceptance specification. | Balancing report requirements, agreed with the proposed verification route. |
| Leak testing, cleaning & packaging | Applicability, test method, acceptance criteria and contamination controls. | Availability, method and records to be confirmed before quotation acceptance. |
Inspection environment
Measurement planned around the part

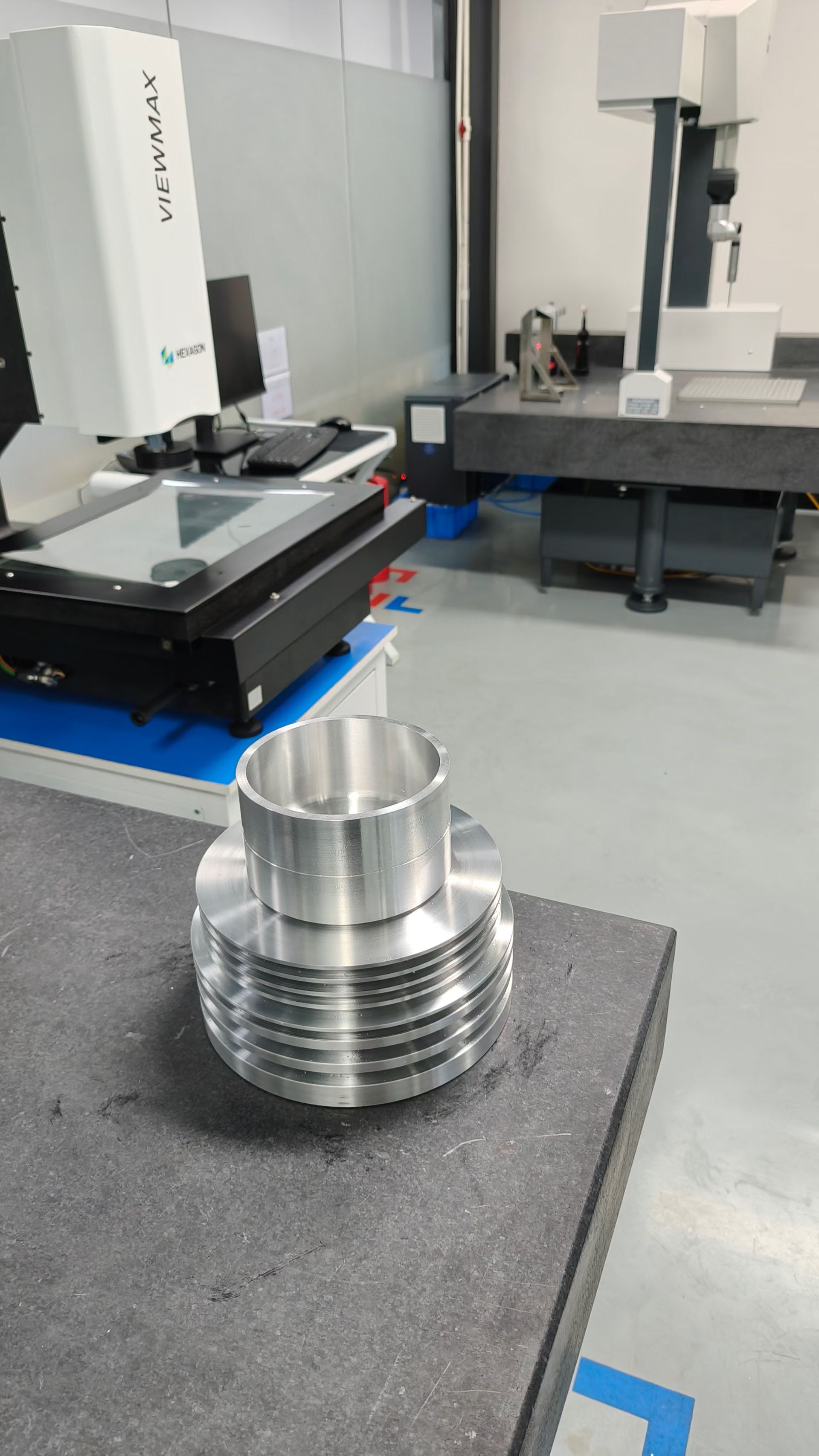

Supplied photograph of a machined component in an inspection environment. Measurement resources, methods and documentation are confirmed for each project during quotation. Ask about the records needed for your acceptance review before production starts.
Drawing-led review
Request a Quote
Include the drawing and inspection requirements for a project-defined review.
