ASTM E595 Reports for Vacuum Components: What Buyers Should Check
Use ASTM E595 as a material screening record, then check sample identity, application limits and separate component acceptance requirements.
Technical solution
High Vacuum Components Manufacturing
Drawing-led partner-production coordination for vacuum-compatible precision components, high vacuum pump housings, stators and related complex parts.
One Geetai contact coordinates the manufacturing route, verification requirements and delivery through qualified partner workshops.

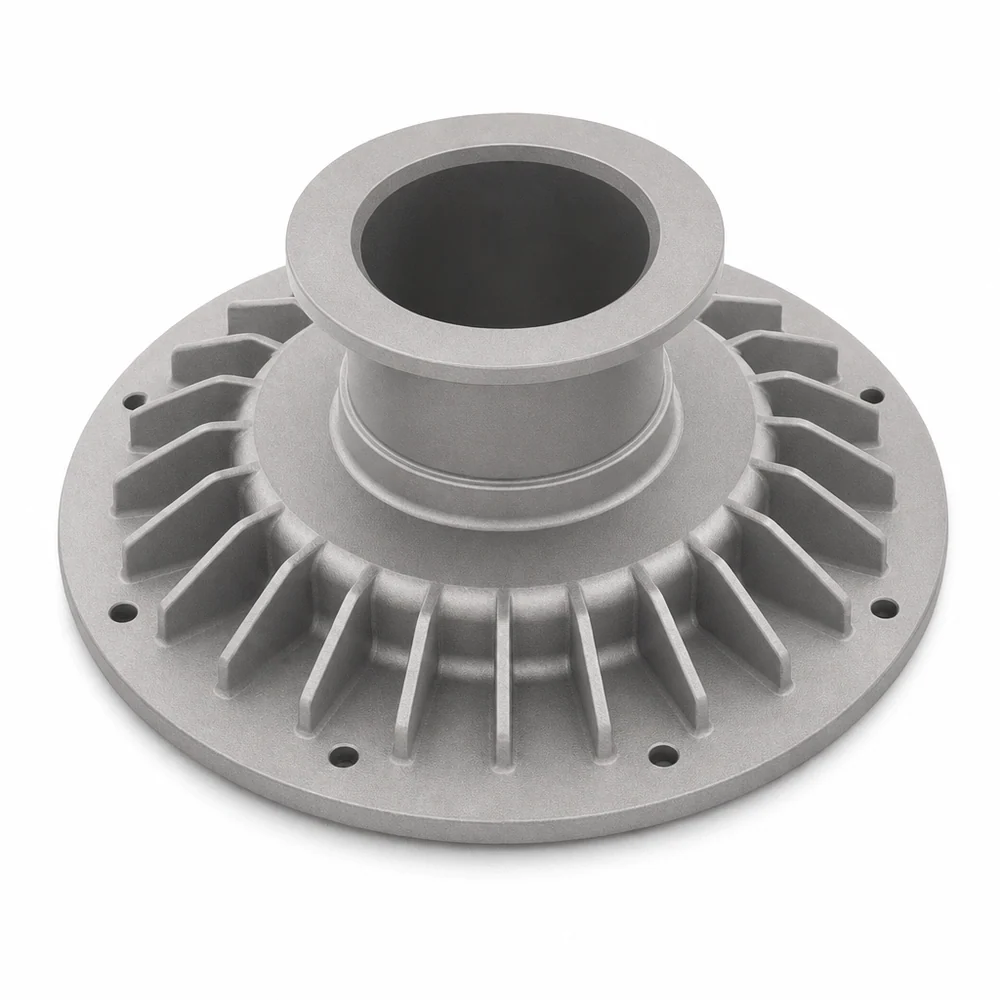

Visual reference
Interfaces, ribs and housing geometry
Supplied imagery for visual context, not evidence of a delivered project. Material, manufacturing route and operating performance are confirmed only through project documentation.
Machining review focus
Vacuum-component review
- Vacuum-compatible precision components are reviewed against the specified material, sealing interfaces, surface requirements and cleaning scope.
- High vacuum pump housing and stator components are quoted only after the drawing and acceptance criteria are reviewed.
- No vacuum rating or service compatibility is inferred from geometry or material family alone.
Buyer inputs
Drawing package inputs
- Controlled drawing and revision
- Material and vacuum-service requirements
- Sealing and interface geometry
- Cleaning and packaging requirements
- Inspection and documentation scope
Verification
Project-defined verification
- Material grade and condition are confirmed in the quotation.
- Surface, cleaning and packaging requirements are treated as project inputs.
- Inspection scope is tied to the approved drawing and purchase requirements.
Before production
Agree the acceptance requirements
Performance, vacuum service and acceptance criteria are confirmed only against the approved drawing and quotation.
Define the critical dimensions, inspection records and functional validation responsibilities before accepting the quotation.
