Machining example
Complex Curved Impeller Components

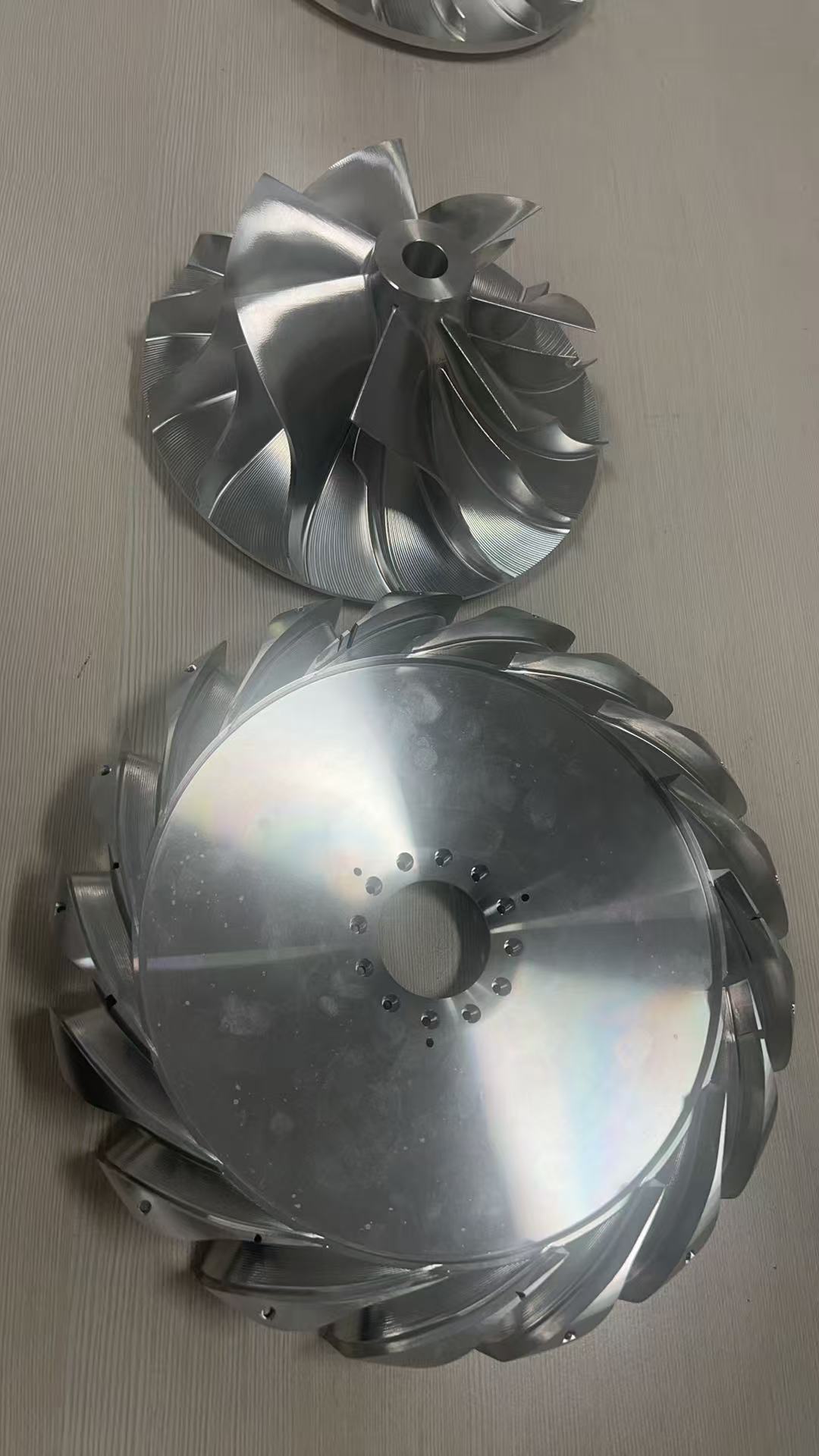

Approved photograph of finished machined components with complex curved blades.
Use this example to discuss similar geometry, not as a specification for your own part.
Process summary
Project process
The components are shown after machining. Production details are reviewed against each customer's drawing and requirements.
Visible features and context
What this example shows
- The approved image shows two components after machining.
- Visible features include curved blade passages, central openings and circular interfaces.
- Customer identity, drawing data, application, vacuum service, operating speed, balancing requirements, material grade, tolerance, quantity and inspection results are not disclosed in this public record.
- Capability for a new part is confirmed only after drawing review.
For a comparable component review
Identify the blade profile, central interfaces, datums and inspection access in your drawing. Include material, quantity and acceptance requirements when available. Confidential data can be exchanged after NDA arrangements.
Explore the rotor manufacturing review
Drawing-led review
Discuss a similar drawing
Capability is confirmed against your own requirements.
